ZA24J

The ZA24J has the maximum working height and lifting capacity available, making it particularly efficient for working at height.

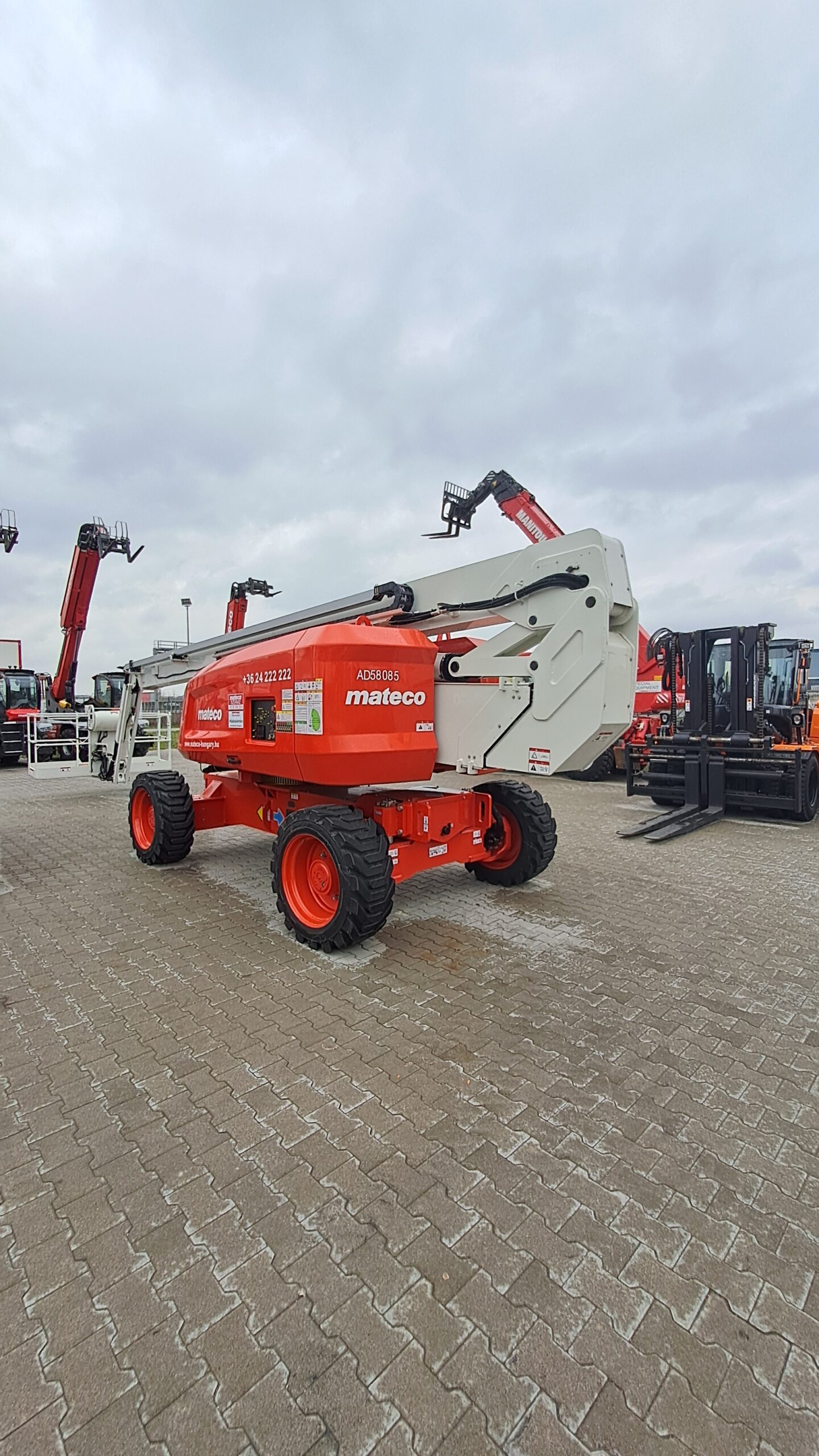

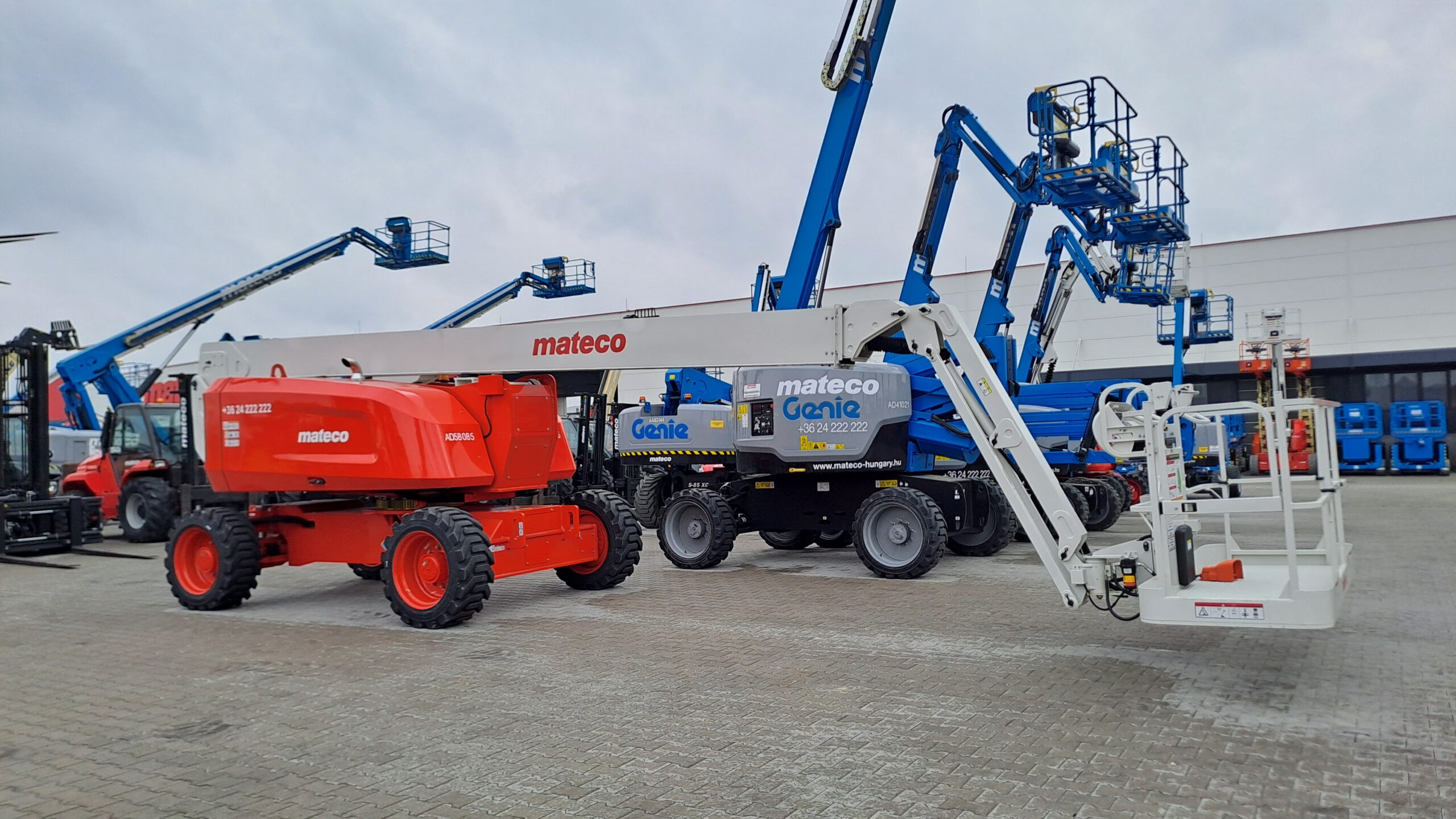

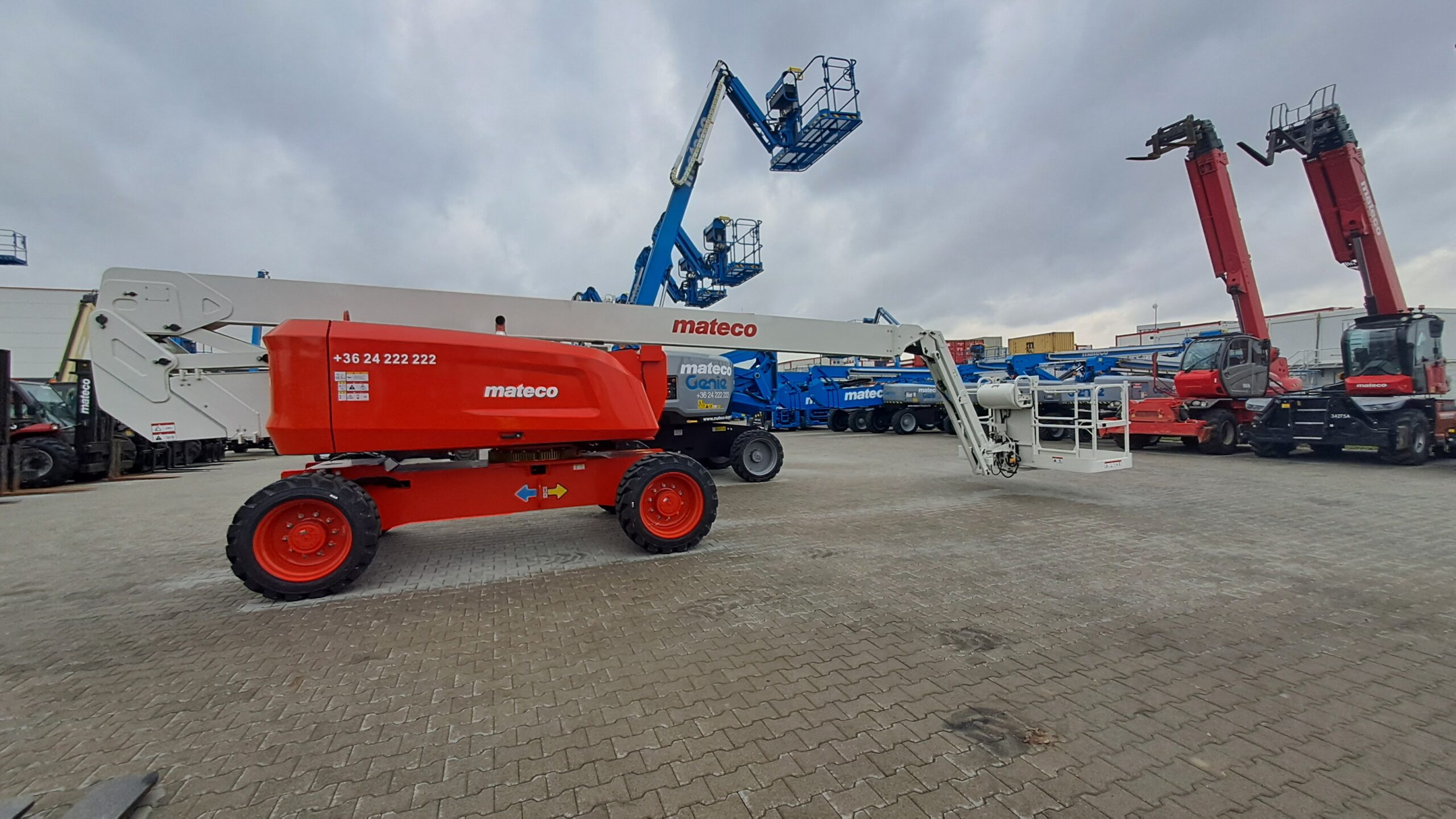

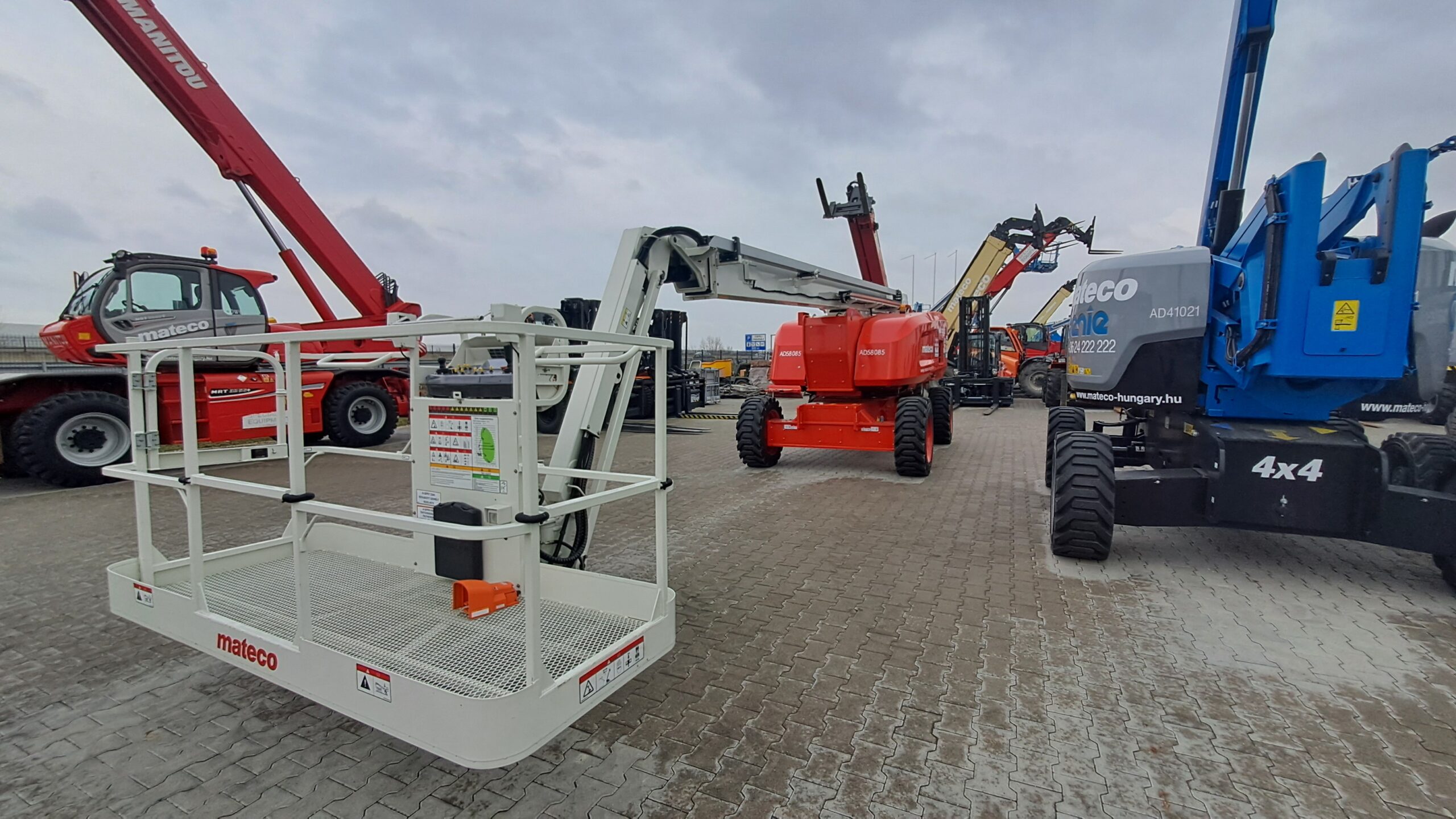

The ZA24J diesel articulating telescopic assembly work platform is a rugged-looking basket lift with a multiple pressure-regulating levelling system for increased stability. Its 5.1 m underground reach is outstanding.

Gallery

Benefits of using

  • 1.

    250 Kg platform capacity for greater efficiency

  • 2.

    4,3′ LED display

  • 3.

    Quick lift function

  • 4.

    15 security protection function

  • 5.

    Complex movement – simple and convenient operation

  • 6.

    Easy and comfortable maintenance

Tank capacity

  • The fuel tank can hold 150 litres of diesel.
  • Maximum tank capacity required to operate the hydraulics: 180 litres.

Technical data

We have summarized the shift data for the Genie Z-45/25 J RT 4WD diesel articulated boom lift. If there is data you need but don’t see it in the specifications, please contact us!

Working height: 26.5 metres

Platform height: 24.5 metres

Maximum outreach: 18.9 metres

Load capacity with operator: 250 Kg

Maximum number: 1 person

Platform width: 0.91 metres

Platform length: 2.44 metres

Machine width: 2.49 metres

Machine length: 11.25 metres

Machine height: 3.00 metres

Machine weight with pallet (if available): 18 300 Kg (may vary depending on equipment)

Holding capacity: 45 %

Axis distance: 3.05 metres

Ground clearance: 0.40 metres

Power: diesel

Turning radius (external): 6.66 metres

Maximum speed: 12.5 Km/h

Wheels: foam-filled tyres

Use: Outdoor
