EXV 16
STILL’s warehouse technology lifts are indispensable wherever there is a need for precise load handling at high lifting heights.
Purely electrical machine!

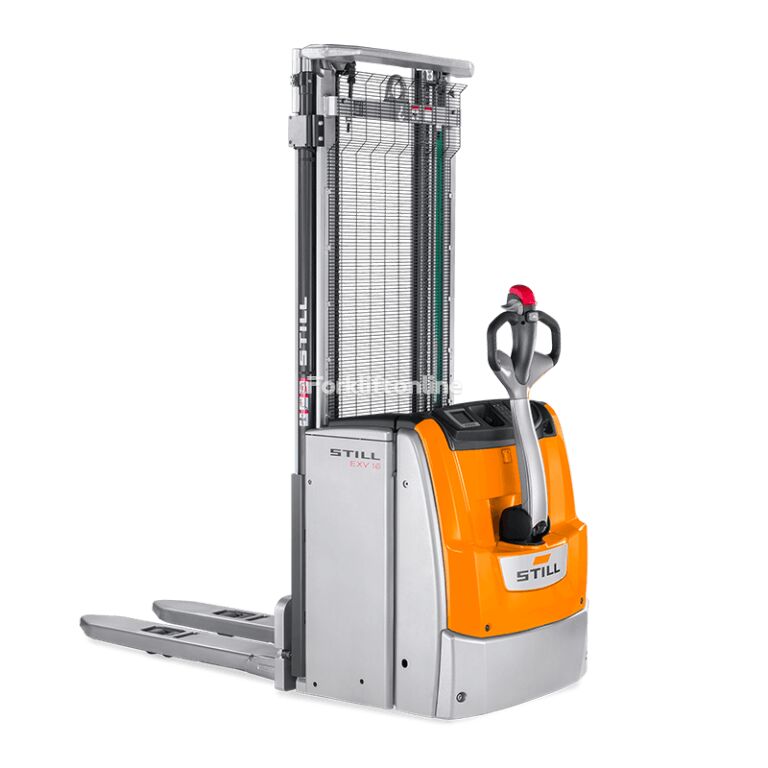

The STILL EXV 16 pedestrian pallet truck with its compact size and easy-to-walk electric tiller makes it perfect for lifting up to maximum 1600 kg to a height of 5.32 metres.
The STILL EXV 16 pedestrian pallet truck can be used for a wide range of applications. Its maximum manoeuvrability and proportional valve control provide precise and fine handling for lifting/ lowering. Its operation is made even easier by its clear colour display, which is robust enough and reflects little light, saving your eyesight.
Benefits of using it
-
1.
Exceptional manoeuvrability thanks to its compact size and precise control
-
2.
Also suitable for compacted goods handling
-
3.
It has a robust and low-maintenance drive
-
4.
3.2 kW lifting hydraulics provide dynamic switching power
-
5.
It has an integrated lowering damping for braking before hitting the ground and reduced noise emissions
-
6.
Slight speed reduction in bends with Curve Speed Control and safe manual load handling with automatic speed reduction above 1500 mm lift height
Tank capacity
- The battery provides 24 V DC and 300-375 Ah of power.
Technical data
We have summarised the technical data of the EXV 16 electric pedestrian pallet truck. If there is any data you need but you don’t see it in the specifications, please contact us!
Maximum nominal load capacity: 1 600 kg
Maximum effective load capacity: 1 600 kg
In elevated mode max height: 5,84 m
Lifting height: 5,32 m
Lift mast: Triplex
Fork size: 1150 x 182 x 55 mm
Travel speed (loaded/unloaded): 6 km/h / 6 km/h
Lifting/lowering speed: 0,15 m/s – 0,40 m/s
Charger size: Built-in
Total weight (without battery): 1 178 kg
Transport length: 1 950 mm
Transport width: 800 mm
Transport height: 2 265 mm
Ground clearence: 30 mm
Wheelbase: 1,31 m
Turning radius (outside): 1,64 m
Gradeability (loaded/unloaded): 23,0% / 10,0%
Free lift height: 1,74 m
Free lift: yes
Power: electric
Use: indoor
Tire: white
