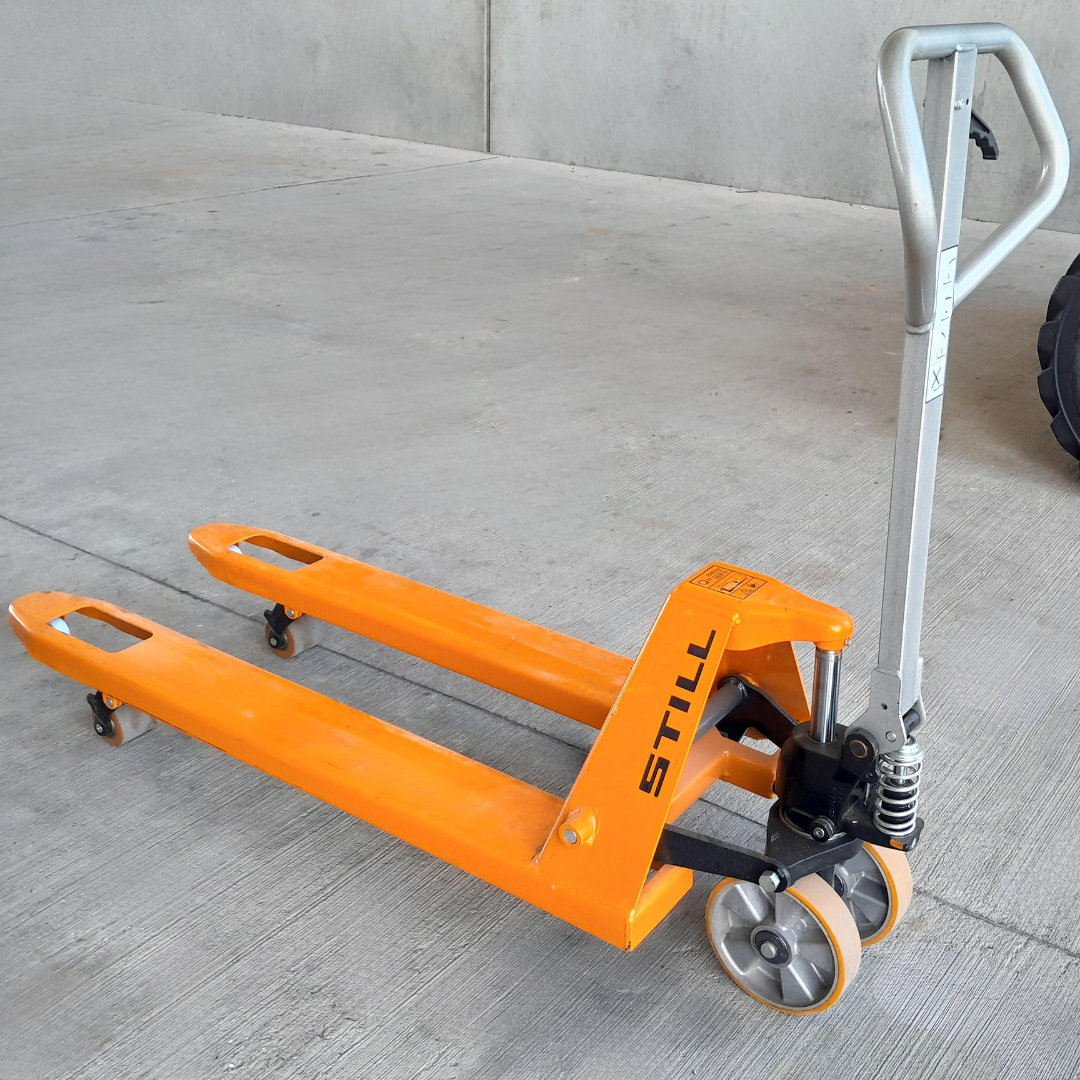

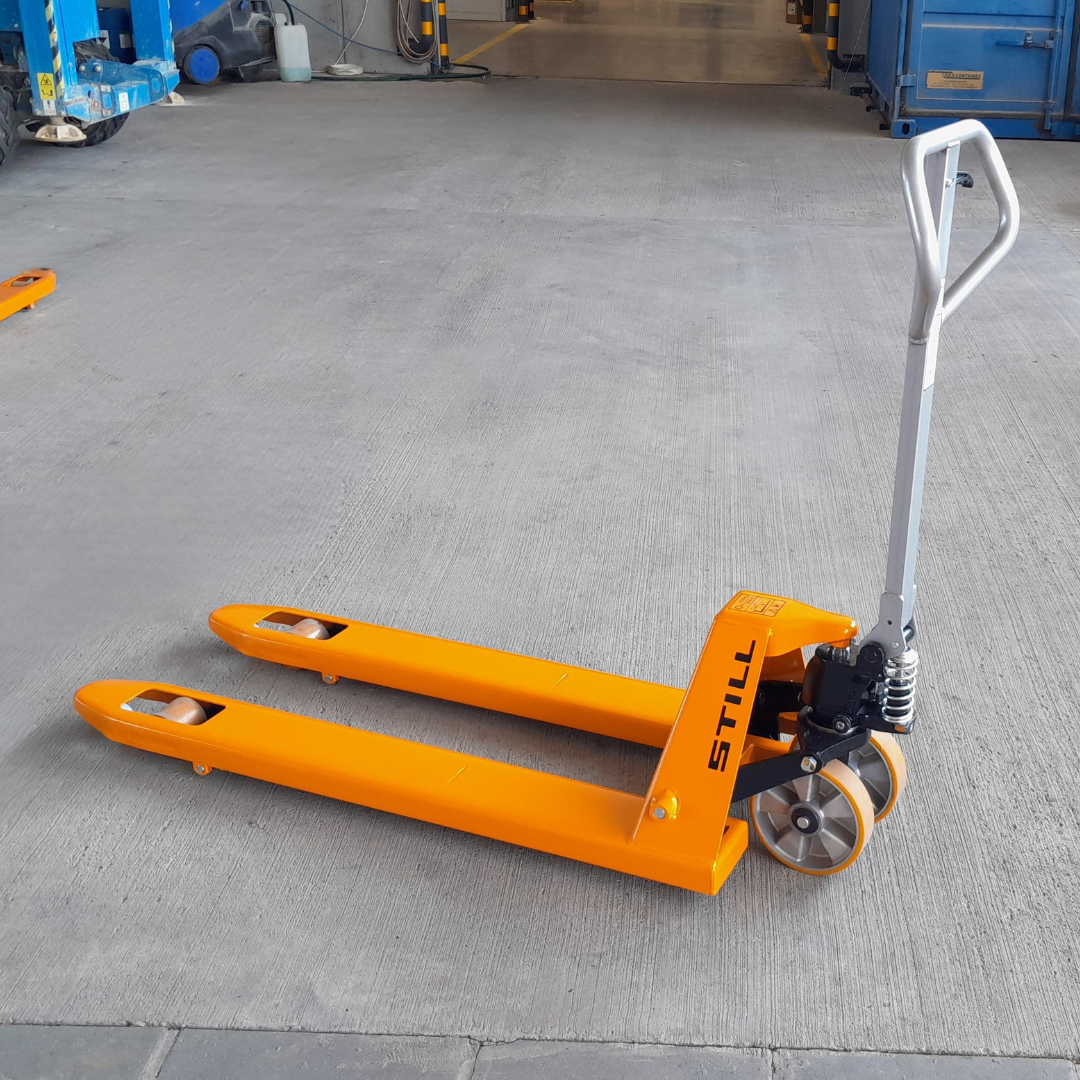

The STILL HPT25 low-lift hand pallet truck with a nominal capacity of 2500 kg is a versatile and easy-to-use model of hand pallet truck.
Manual pallet trucks are indispensable tools for internal material handling: they are flexible, easy to use, and always ready for immediate use. It is no coincidence that they represent one of the most widespread categories of industrial trucks in logistics. The HPT25 model is capable of moving loads of up to 2,500 kg, while its well-thought-out, functional design and user-friendly operation make everyday work easier.
The ergonomically designed steering column reduces physical strain on the operator, contributing to continuous, efficient work. The 205° steering angle provides exceptional maneuverability, even in tight warehouse environments.
It has a quick lift function for loads of up to 150 kg. This is particularly advantageous for fast loading tasks: it is ideal for loading and unloading trucks, moving pallets over short distances, and intensive daily logistics operations.
Easy maneuverability: optimal steering wheel dimensions and roller bearing design help reduce the amount of force required
Precision when loading: smooth lowering and a stable frame help to position pallets accurately, reducing the number of lifting/pulling movements required.
Flexibility and mobility: easy to move around the warehouse; no special charging station required
Low maintenance requirements: simple hydraulics and mechanical components — inexpensive and quick to repair
Environmental range: depending on the model, it can be used between -12 °C and +50 °C (special versions up to -30 °C), which makes it suitable for use in logistics and refrigerated storage environments. It can be found on the boom head to ensure safe loading operations at height.
We have summarized the technical data for the HPT25 low-lift pallet truck. If you need any information that is not included in the technical data, please contact us here!
Maximum nominal load capacity: 2 500 kg
Maximum effective load capacity: 2 500 kg
Fork height in lowered position: 85 mm
Fork size: 55 x 150 x 1 150 mm
Total weight (without battery): 63 kg
Transport length: 1,550 m
Transport width: 0,525 m
In elevated mode max height:1,185 m
Ground clearence: 30 mm
Wheelbase: 1,192 m
Turning radius (outside): 1,367 m
Power: Pediatric
Use : indoor , outdoor
Tire: white
